record PST 20 – Angled Sliding Door

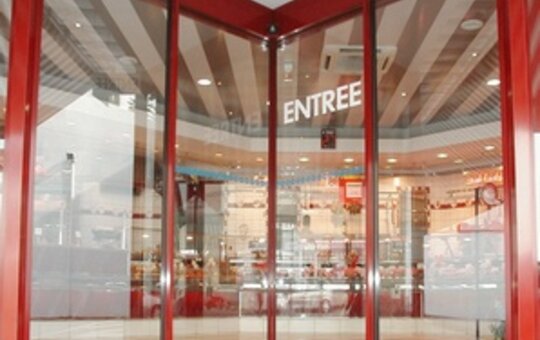

This is an entrance of originality, with extraordinary looks. The angle is freely selectable between 90° and 180° and can be applied inside or outside. With obtuse angles, this type of door is often fitted to operate over a large radius, and is also widely used in place of curved doors.

record PST 20 – Angled Sliding Door
record PST 20 – Angled Sliding Door record PST 20 – Angled Sliding Door


The record system 20 supplies the basis of our automatic door drives. It enables us to provide a wide range of models for the market, all of which are based on this system and use the same components, modified to suit the needs of the individual customer. The result is quicker assembly and lower service and maintenance costs.

The record system 20 fulfils 2006 / 42 /  EG industrial guidelines for machines, DIN 18650 as well as meeting all relevant national and international norms and standards.


For the record system 20, there are 20 mm thick aluminium profiles available for 30 mm thick profiles suitable for 19 mm thick insulating glass to allow the greatest possible transparency. Even profiles of other manufacturers up to 65 mm can be fitted. Both profiles and drive unit cover can be anodized or powder-coated.

Drive unit heights for both the normal, DUO and RED versions are available in 200 mm.

The drive unit can be fitted to the lintel, freestanding or integrated in the ceiling.


The absence of noise is the most striking feature of record automatic doors. Our combination of short, low-momentum toothed belts, rollers made from hard-wearing, low-noise plastic, acoustically decoupled running tracks, guide pulley wheels with ball bearings and door leaf guides with specially developed guide profiles all contribute to an exceptionally quiet running door.

Our efforts to produce the quietest automatic doors possible can also be seen in their operation. They open and close exceptionally quietly, which is indicative of the highest precision and the perfect matching of materials; this precision engineering can also be seen in the harmonious sequence of door leaf movements.


The record system 20 components can communicate with one another interactively, which, among other things, enhances safety and security. The ability of drive, sensors and remote to communicate enables continuous monitoring of component status. The operational status of the door system and its individual electronic components also continuously undergo plausibility checks. Thanks to its learning capacity, the potential of the unit to malfunction is reduced to a minimum.
