Case Studies – Level 42, 259 George Street, Sydney

Located in the heart of Sydney’s financial district, 259 George Street is an imposing establishment to the Sydney skyline, offering its tenants breathtaking views of the city and harbour.

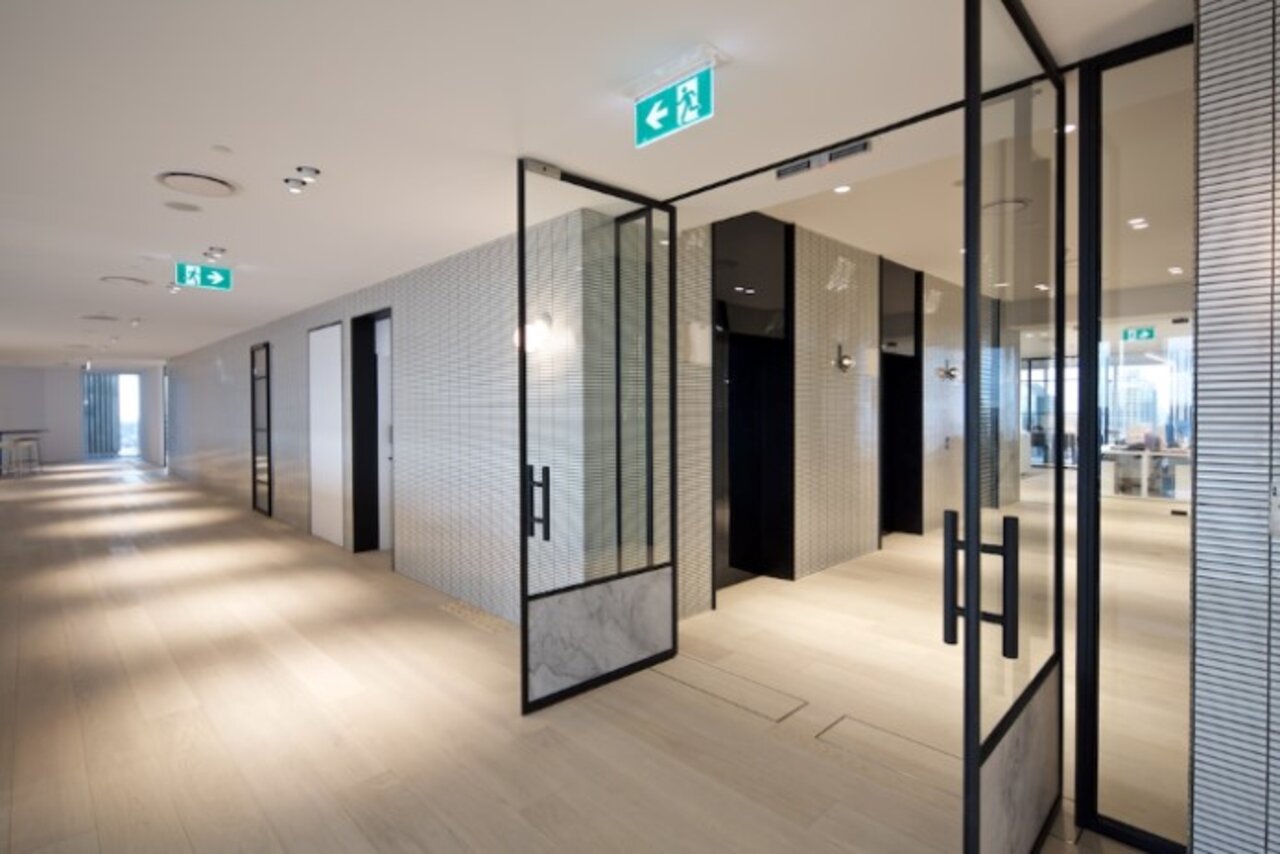

At the top of this tower is the commercial offices of the building’s owner, Memocorp Australia, and as part of the full refurbishment of this office, record Automatic Doors was selected to install two C 127 infloor mounted automatic swing door operators to the main entry from the lift lobby.

In this application, the two operators are linked to allow them to open together from a signal from the card reader in the lift lobby, or push button in the office. Due to the design of the custom steel framed swing doors, one operator is required to open before, and close after, the other operator.

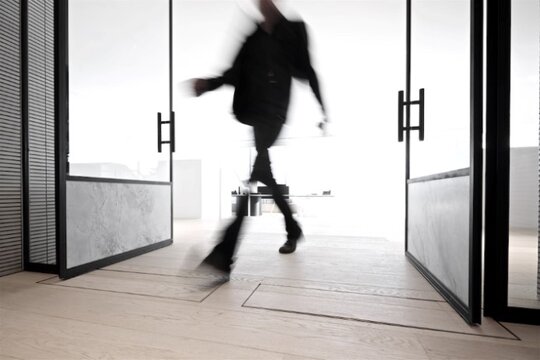

Capable of operating swing doors weighing up to 400kg, the record C 127 operator measures 780 x 270 x 150mm deep when encapculated within its special infloor housing which allows the flooring contractor to provide a custom access panel to match the surrounding timber finish. The end result is a striking dual automatic swing door system, providing a secure and accessible entrance for the building occupants.
