Case Studies – ANZ Tower, Sydney

With entries from both 161 Castlereagh Street and 242 Pitt Street, ANZ Tower is a 42 storey Premium Grade office building located in the heart of the Sydney CBD. A part of Grocon’s Liberty Place princinct, designed by FJMT, which includes the refurbishment of the historic Legion House, it boasts a 6-Star Green Star Design v2 rating.

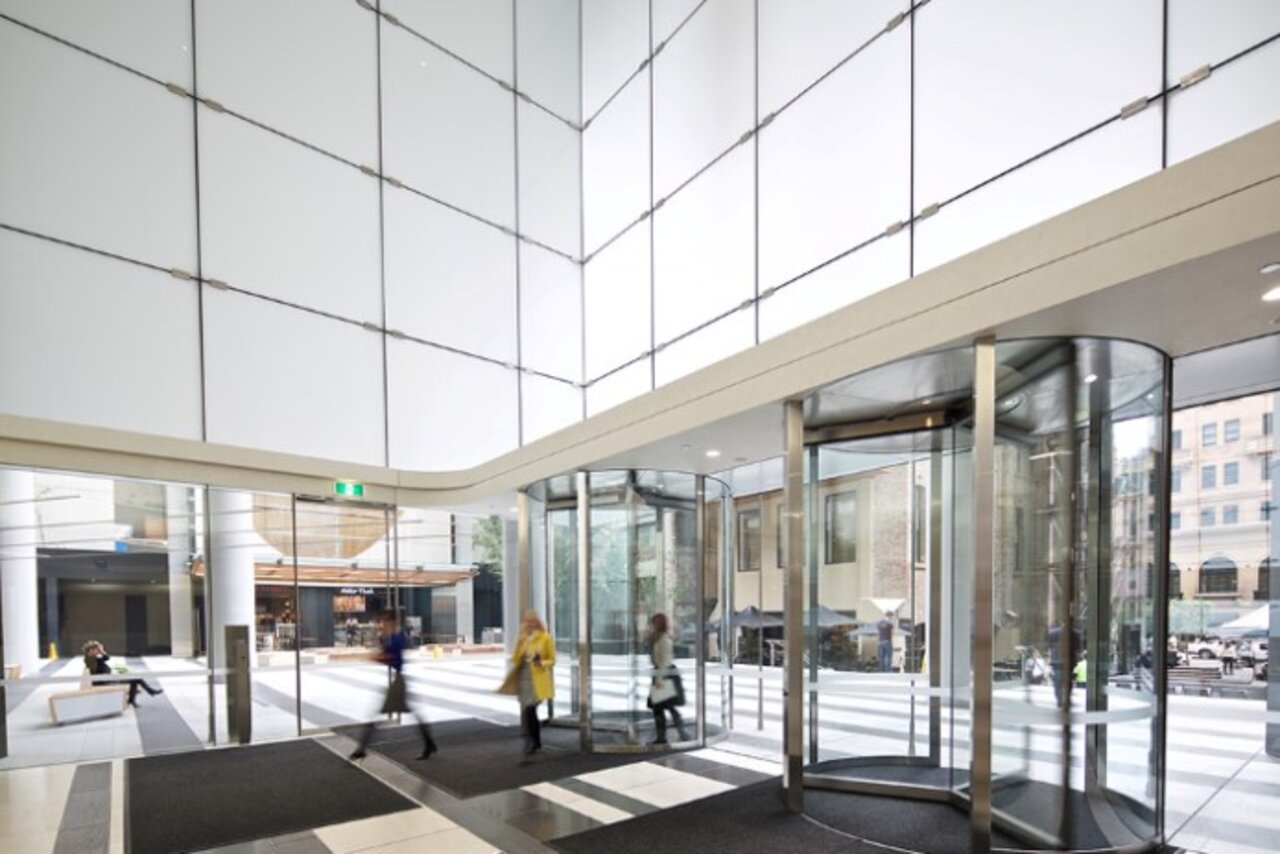

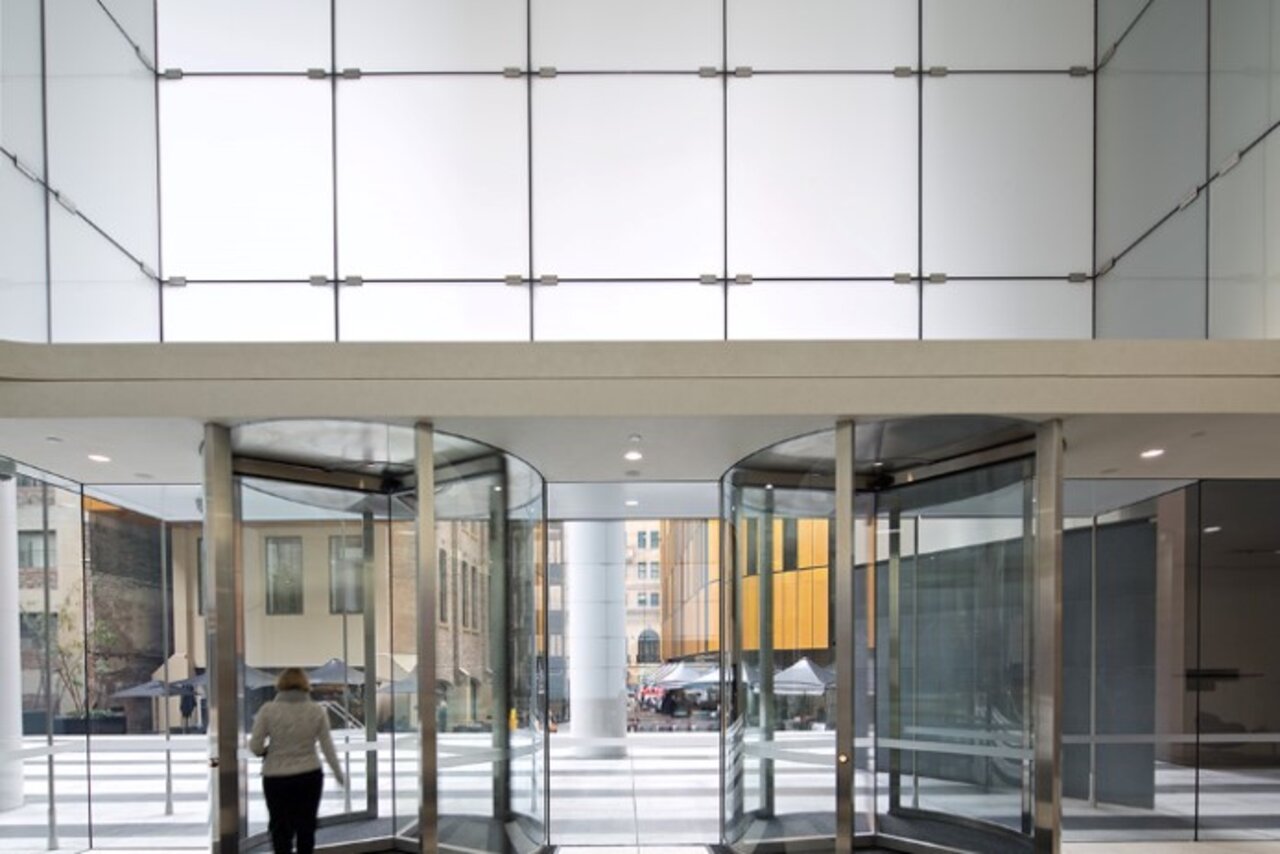

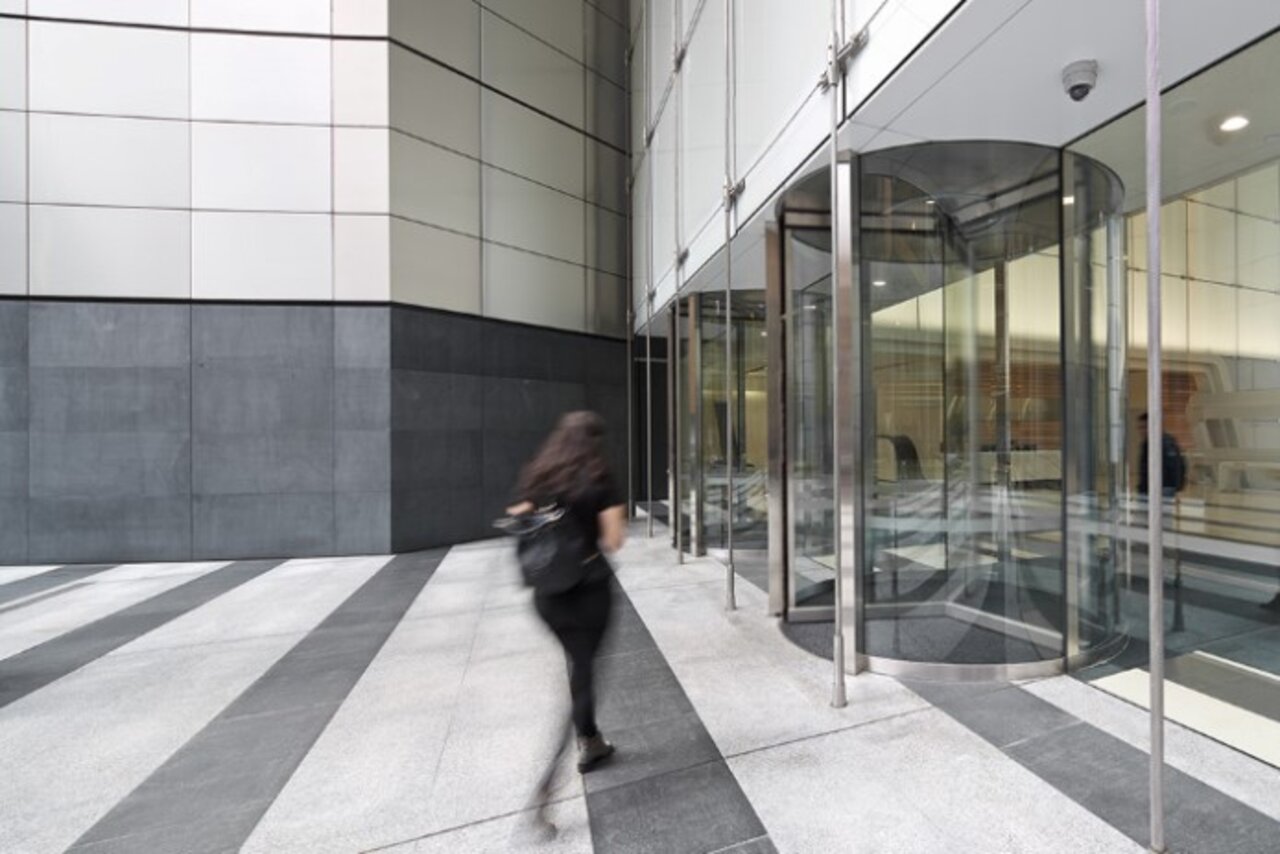

Four Fullview Series revolving doors were selected to the lobby entries, with special extended clear passage heights of 3350mm and 3600mm to allow the canopy of the doors to be concealed within the portal soffit of the tensile steel glazing above.

To allow the white clad portal to span across the entrance without any support posts, the structure of the Fullivew doors were specially engineered to assist in supporting the necessary dead loads. In addition to the glass facade requiring double and triple low e coated glass in argon filled DGU panels, the glass to the revolving doors was also supplied with high performance coatings.
